TÜV Rohs Conform

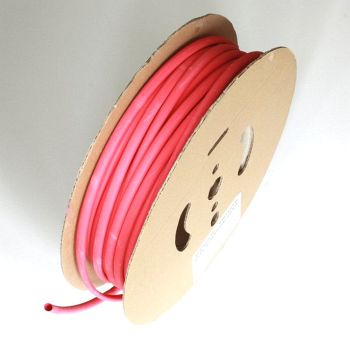

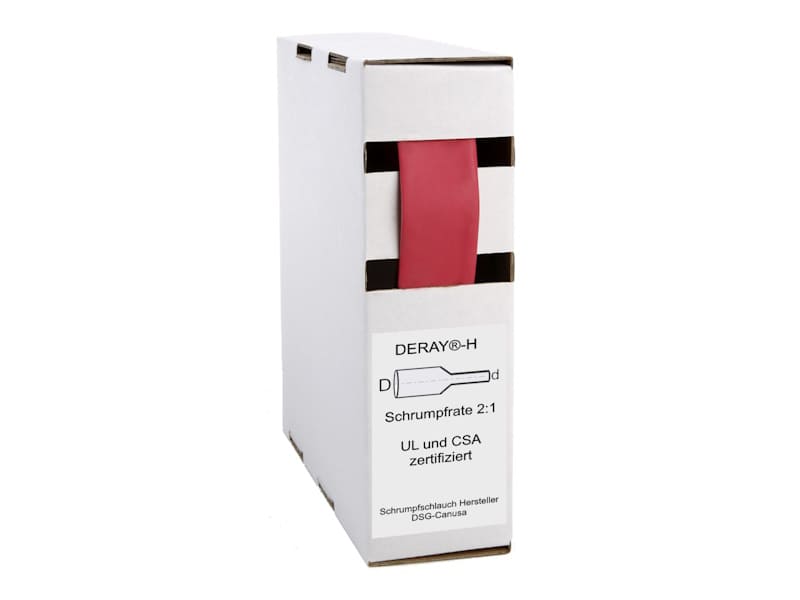

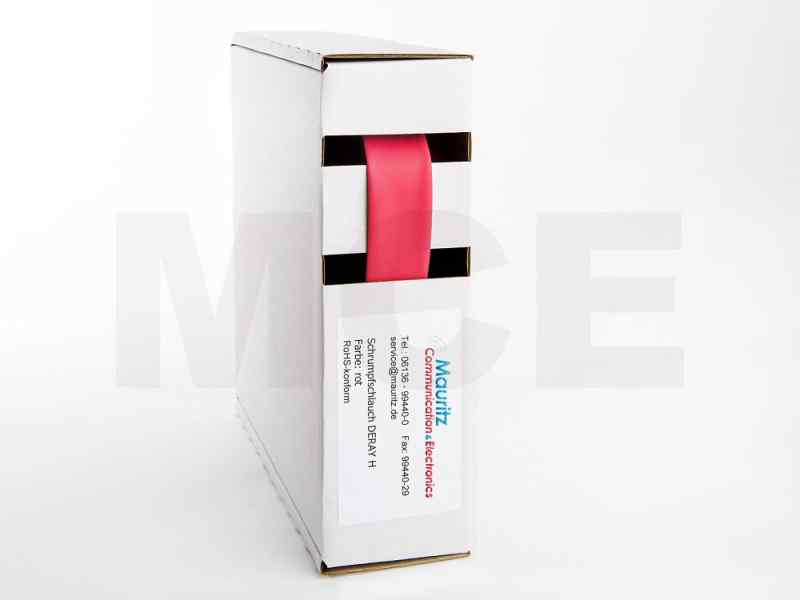

Shrink Tubing red 12,7 / 6,4 mm, Box 7,5m DERAY-H

delivery time: 2-3 Tage
Product.Nr.: 411216
weight: 0.230 kg
Manufacturer: DSG-Canusa

Business customers graduated prices after
registration in the login with your VAT ID.

13,36 EUR - 17,60 EUR
2,35 EUR pro Meter TEXT_INCL 19 % TEXT_VATexcl. shipping costs


Quantity Single price Saving pro Meter
1-2 17,60 EUR 2,35 EUR
>= 3 13,36 EUR -24 % 1,78 EUR

Heat Shrink Tubing DERAY®-H red 2:1 of polyolefin, thin-walled, flexible

DERAY®-H heat shrink tubing made ​​of crosslinked polyolefin , color red, shrink ratio 2:1, thin wall, flexible , flame retardant, UL and CSA certified (DERAY®- H Clear is not UL or CSA listed), shrinking at + 110°C and is for permanent use at temperatures of -55°C to +135°C is used and manufactured in Germany.
DERAY®-H heat shrinkable tubing with internal diameters from 1.2mm to 101.6mm before shrinking by the meter in the blank according to your specifications, in practical mini-box (mini-box to 25,4mm before shrinkage) and available on industry spool reels
Standard colors are black, clear / transparency, red, yellow, blue, white and green. However, gray and brown are special colors almost always in stock. The special color Orange we offer under the name TOPPCROSS, but not with 16mm and 32mm diameter before shrinking.
Punched shrink tubing sections in your desired length, whether or not printed, are also available on request.


Specifications DERAY®-H heat shrink tubing

Color Red
Material Cross-linked polyolefin
Material properties Thin-walled, flexible
Featuring Box
Inner Ø before shrinking 12.7mm
Inner Ø after total shrinking 6.4mm
Wall thickness after complete shrinkage   0.6mm
Shrink Ratio 2:1
Continuous Operating Temperature -55°C bis +135°C
Shrink Temperature +110°C
Flammability Flame-retardent
Approvals / Specifications UL, CSA
Features RoHS Complient


Complete specifications DERAY®-H heat shrink tubing as PDF for download

Heat Shrink Tubing DERAY®-H, a quality tube "Made in Germany"
