Heat Shrink Tube Box 20m Transparent 0.8mm / 0.45mm

Ab Lager verfügbar
delivery time: 2-4 Tage
Product.Nr.: 461101
weight: 0.120 kg
Manufacturer: Import
rating:

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price pro Meter
1-1 5,80 EUR 0,29 EUR
>= 2 -4 % 5,56 EUR 0,28 EUR

5,56 EUR - 5,80 EUR
incl. 16 % VATexcl. shipping costs

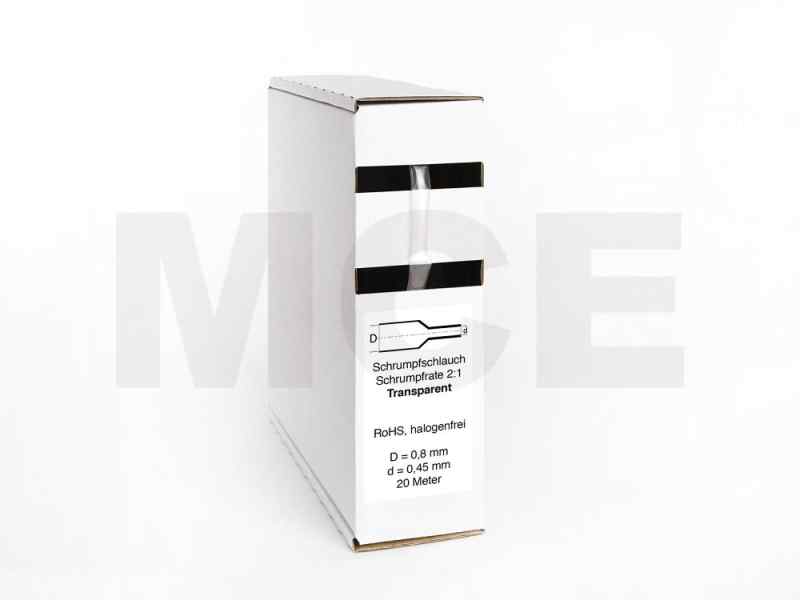

Box, 20m Heat Shrink Tubing Transparent Ø 0,8mm

Shrink tubing box, transparent shrink tube Ø 0.8mm before shrinkage, shrink ratio 2:1

Heat shrink tubing of cross-linked polyolefin, color transparent, shrink ratio 2:1, thin-walled, flexible, halogen-free.
Min. shrink temperature +85°C and is used for permanent use at temperatures from -55°C to +135°C.

This heat shrink tubing is available with diameters from 0.8mm up to 150mm before shrinking by the meter in the blank according to your specifications and up to 25,4mm inside diameter before shrinkage in the practical dispenser box.

Standard colors:

Black, Transparent / Clear, Red, Yellow, Blue, White, Green and Orange.

Other colours on request.



Specifications Heat Shrink Tube


Colour  Transparent, Clear
Material  Cross linked polyolefin
Material properties  Thin walled, flexible
Featuring  Box with 20m
Inner Ø before shrinking  0.8mm
Inner Ø after total shrinking  0.45mm
Wall thickness after complete shrinkage   0.35mm
Shrink Ratio  2:1
Continuous Operating Temperature  -55°C bis +125°C
Shrink Temperature  +85°C
Flammability  Flammable
Approvals / Specifications  Halogen free
Features  RoHS Complient
