TÜV Rohs Conform

Ecoflex 10 Plus 50 Ohm 8 GHz

delivery time: 2-3 Tage
Product.Nr.: 1010864
weight: 0.103 kg
Manufacturer: SSB-Electronic

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price Saving pro Meter
1-24 5,14 EUR 5,14 EUR
>= 25 4,94 EUR -4 % 4,94 EUR

4,94 EUR - 5,14 EUR
5,14 EUR pro Meter incl. 19 % VATexcl. shipping costs

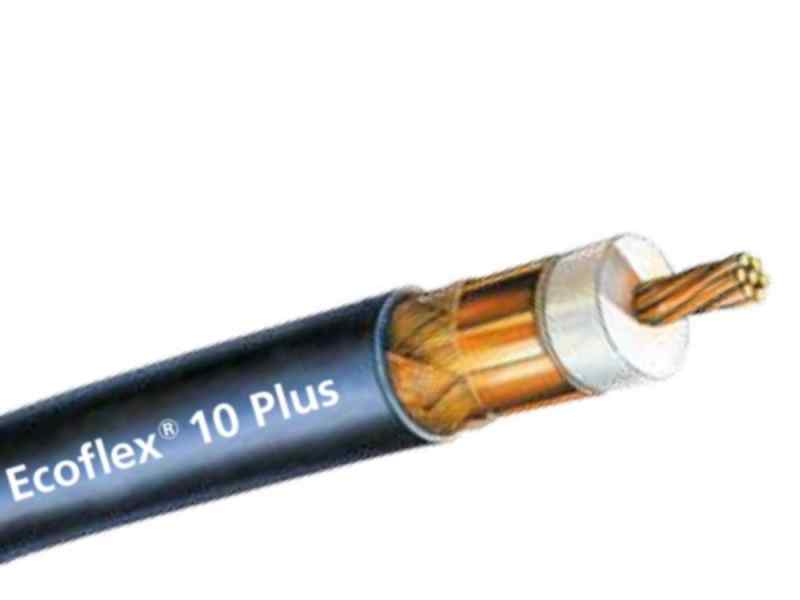

Ecoflex 10 Plus



50 Ohm Coaxial Cable for applications up to 8 GHz

Ecoflex10 Plus is a highly flexible, low-loss coaxial cable, which was developed specifically for use up to 8 GHz. The latest production methods and the use of a low-loss PE-LLC dielectric with a gas proportion of more than 70% allow very low attenuation values. The Ecoflex10 Plus sets new standards for flexible coaxial cables.

The high flexibility of Ecoflex10 Plus is guaranteed by a seven wire Hybrid inner conductor with aluminum core and welded copper shield. The inner conductor is stranded in precise production steps, compressed, calibrated and finally provided with a precoating to very good Dämpfungswerte- and adjustment values ​​to erzielen.Ein Another plus is the double shielding. An overlapping copper foil and an overlying copper braid guarantee a high shielding in excess of> 90 dB at 1 GHz. The copper foil has a PE coating, which prevents the formation of small bending radii by cracks in the copper foil. The black PVC outer sheath of Ecoflex10 Plus is UV stabilized. In addition to a full range of standard connectors, a user-friendly solder-free N-connector has been specially developed for the Ecoflex10 Plus. The connector can be installed in minutes with no special tools. Ecoflex10 Plus is the innovative coaxial cable for almost all applications in the Hochfrequenztechnik.Dämpfungsarm, ultra flexible, stray radiation safe and suitable up into the microwave frequencies.

We deliver Ecoflex10 Plus the cut according to your wishes from 1m on.

Ecoflex10 Plus we also deliver in the following finished lengths as coils and drums with 25m, 50m, 102m, 202m, 505m, 1010m.

Data sheet Ecoflex-10-Plus
