TÜV Rohs Conform

Aircell 7 assembled with SMA Male to SMA Female, 1m

delivery time: 2-5 Tage - Anfertigung nach Bestelleingang
Product.Nr.: 880-2411-2511-100s
weight: 0.120 kg
Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

18,37 EUR - 23,25 EUR
23,25 EUR pro St. TEXT_INCL 19 % TEXT_VATexcl. shipping costs

Discount

Quantity Single price Saving pro St.
1-99 23,25 EUR 23,25 EUR
>= 100 18,37 EUR -21 % 18,37 EUR

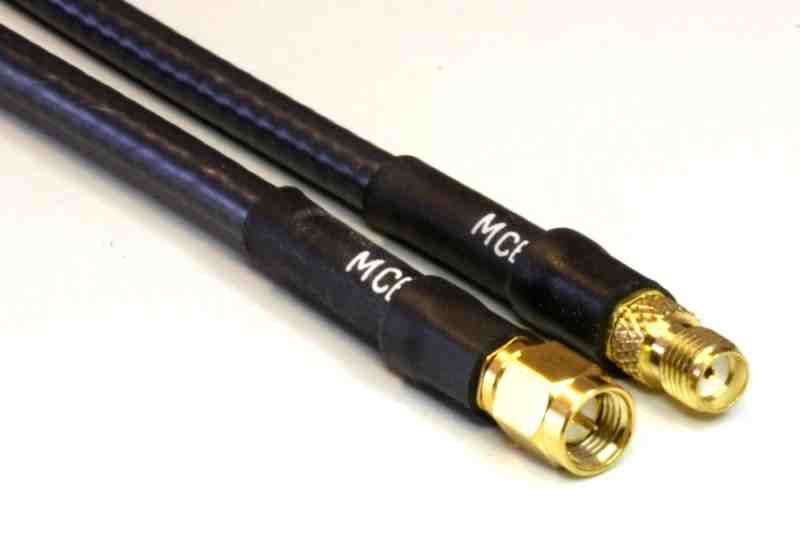

Aircell 7 Coaxial Cabel

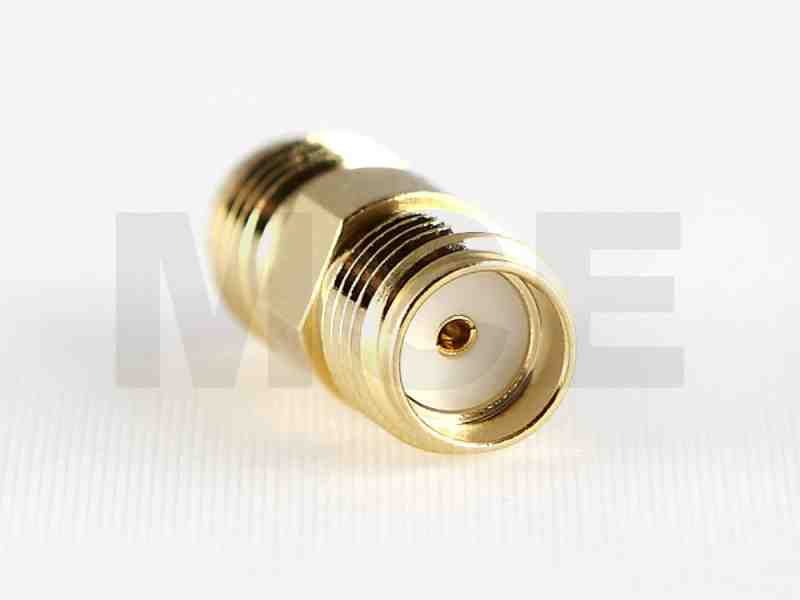

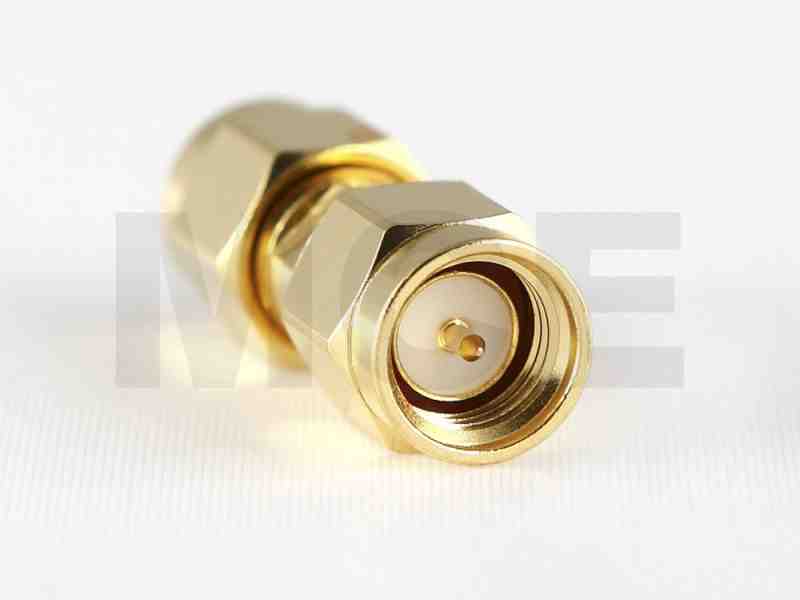

assembled with SMA Male to SMA Female
Length 1m
Attenuation values for Aircell 7,
relative to 1m cable length:

  • 800 MHz ~ 0,19dB
  • 1000 MHz ~ 0,22 dB
  • 1300 MHz ~ 0,25 dB
  • 1500 MHz ~ 0,27dB
  • 1800 MHz ~ 0,3 dB
  • 2000 MHz ~ 0,32 dB
  • 2400 MHz ~ 0,36 dB
  • 2600 MHz ~ 0,38 dB
  • 5600 MHz ~ 0,62 dB


Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
