TÜV Rohs Conform

Aircell 7 assembled with SMA Male to SMA Female, 4m

Aircell 7 assembled with SMA Male to SMA Female, 4m
Aircell 7 assembled with SMA Male to SMA Female, 4m
Aircell 7 assembled with SMA Male to SMA Female, 4m
delivery time: 2-5 Tage - Anfertigung nach Auftragseingang
Product.Nr.: 880-2411-2511-400s
weight: 0.360 kg
Manufacturer: MCE Mauritz Electronics

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price Saving pro St.
1-99 33,99 EUR 33,99 EUR
>= 100 24,56 EUR -28 % 24,56 EUR

24,56 EUR - 33,99 EUR
33,99 EUR pro St. TEXT_INCL 19 % TEXT_VATexcl. shipping costs

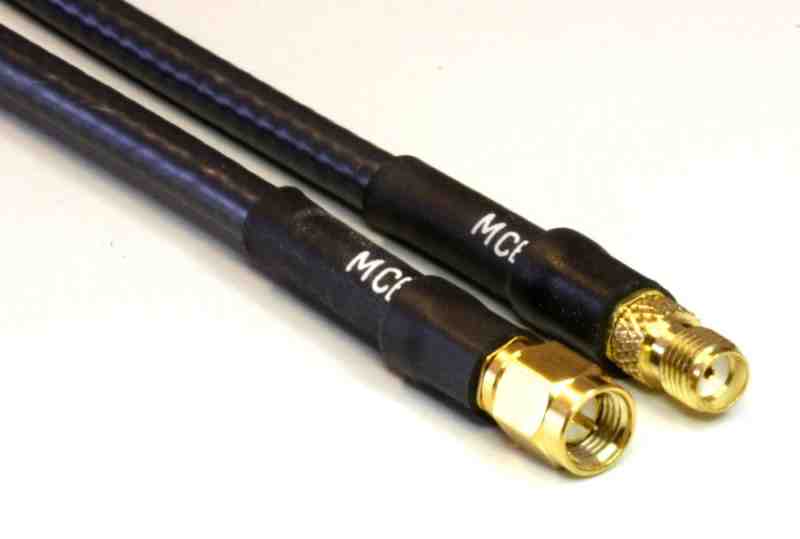

Aircell 7 Coaxial Cabel

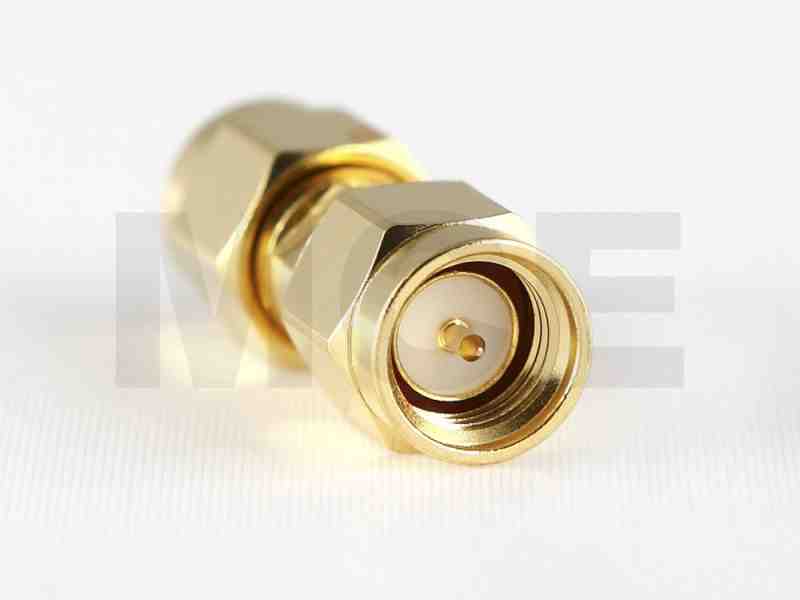

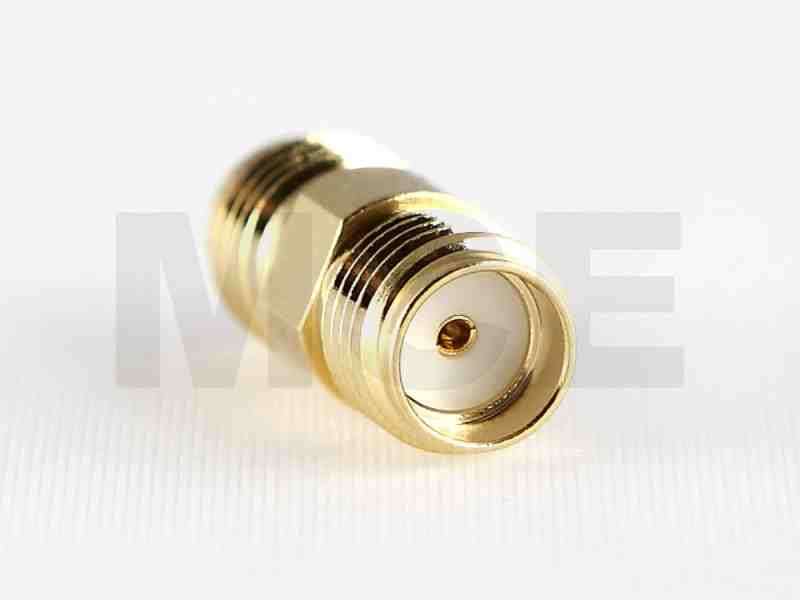

assembled with SMA Male to SMA Female
Length 4m
Attenuation values for Aircell 7,
relative to 1m cable length:

  • 800 MHz ~ 0,19dB
  • 1000 MHz ~ 0,22 dB
  • 1300 MHz ~ 0,25 dB
  • 1500 MHz ~ 0,27dB
  • 1800 MHz ~ 0,3 dB
  • 2000 MHz ~ 0,32 dB
  • 2400 MHz ~ 0,36 dB
  • 2600 MHz ~ 0,38 dB
  • 5600 MHz ~ 0,62 dB


Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
