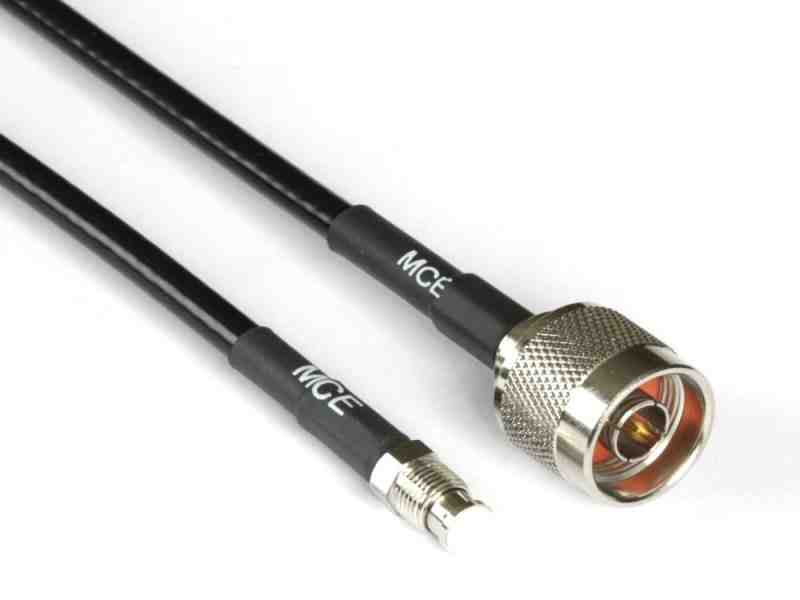

Aircell 7 assembled with N Male to FME Female, 50cm

Aircell 7 assembled with N Male to FME Female, 50cm
Aircell 7 assembled with N Male to FME Female, 50cm
Aircell 7 assembled with N Male to FME Female, 50cm
delivery time: 2-5 Tage - Keine Rücknahme - Herstellung nach Bestelleingang
Product.Nr.: 880-2211-1511-050s
weight: 0.080 kg
Manufacturer: MCE Mauritz Electronics

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price Saving pro St.
1-4 25,17 EUR 25,17 EUR
>= 5 23,41 EUR -7 % 23,41 EUR

23,41 EUR - 25,17 EUR
25,17 EUR pro St. incl. 19 % VATexcl. shipping costs

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with

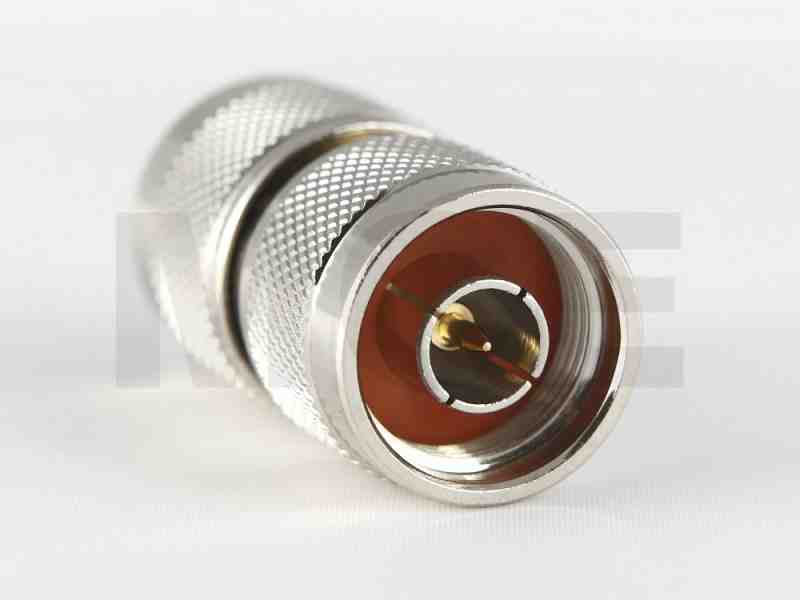

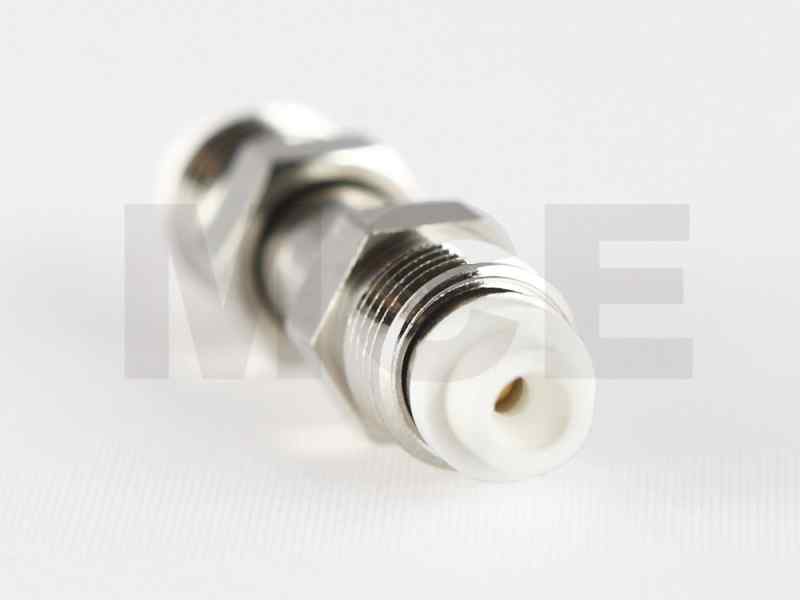

N Plug, FME Jack
Length 50cm

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

  • HAM Radio
  • Data collection with (RFID)
  • Mobile (GSM, LTE, MIMO, UMTS)
  • Navigation (GPS)
  • Telephony (DECT)
  • Wireless networking (WLAN)
  • General Electronics

DC up to 6 GHz

Attenuation values for Aircell 7
relative to 1m Cablelength:

  • 800 MHz ~ 0,28 dB
  • 1000 MHz ~ 0,31 dB
  • 1300 MHz ~ 0,42 dB
  • 1500 MHz ~ 0,39 dB
  • 1800 MHz ~ 0,42 dB
  • 2000 MHz ~ 0,45 dB
  • 2400 MHz ~ 0,49 dB
  • 2600 MHz ~ 0,52 dB
  • 5600 MHz ~ 0,87 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
