TÜV Rohs Conform

Crimping Tool 336C for Aircell 5, RG 58, RG 59, RG 400

delivery time: 2-3 Tage
Product.Nr.: 701005
weight: 0.540 kg
Manufacturer: Taiwan

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price Saving
1-2 29,50 EUR
>= 3 28,32 EUR -4 %

28,32 EUR - 29,50 EUR
incl. 19 % VATexcl. shipping costs

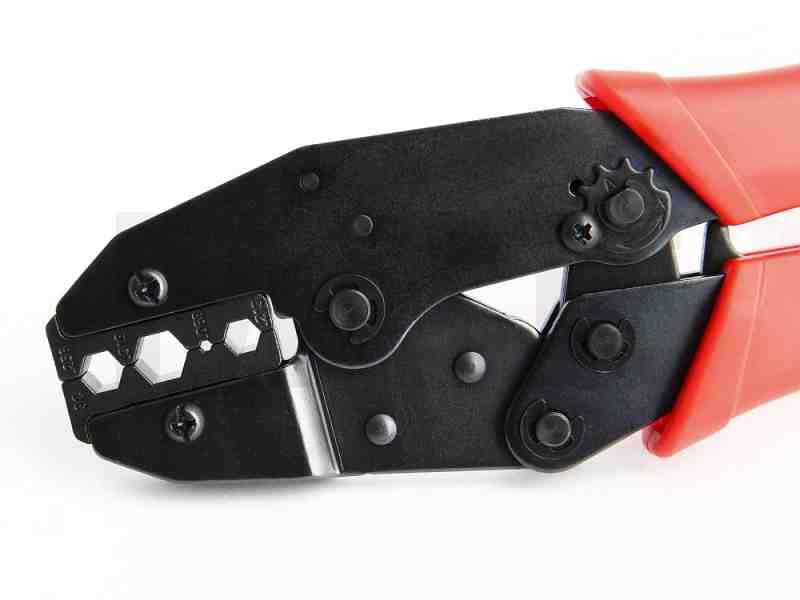

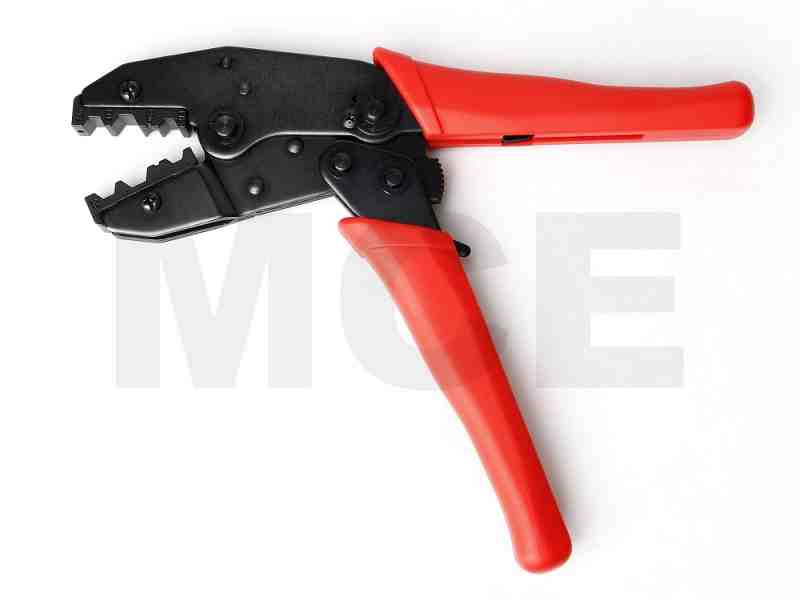

Crimping Tool with Ratchet, Emergency Release and Crimp Insert Type 336-C *

This Crimp Insert Type C has the following sizes:

0.068" = 1,73 mm
0.213" = 5,41 mm
0.256" = 6,50 mm
0.319" = 8,10 mm

Crimpsize 1.73 mm is required for the most inner conductor-contacts of coaxial cables as follows:
RG-58, RG-59, RG-62, RG-71, RG-142, RG-223, RG-400, Aircell-5, H-2005, CLF195, CLF200, HDF195, HDF200, LMR195, LMR200

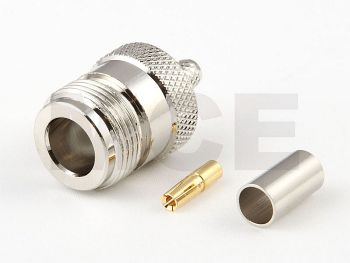

Crimpsize 5.41 mm is required for crimp ferrules of crimp connectors following coaxial cables:
RG-58, RG-59, RG-62, RG-71, RG-142, RG-223, RG-400, Aircell-5, H-2005, CLF195, CLF200, HDF195, HDF200, LMR195, LMR200

Crimpsize 6.50 mm is required for crimp ferrules of crimp connectors following coaxial cables:
Belden H 155, CLF240, HDF240, LMR240

Crimpsize 8.10 mm is required for crimp ferrules of crimp connectors following coaxial cables:
Aircell-7, H2007, LMR300, HDF300, CLF300

* Depending on the type of connector and coaxial cable crimp inserts can also be exchanged against other crimping dies of the type 336 with 2 screws, even with this crimping tool.
