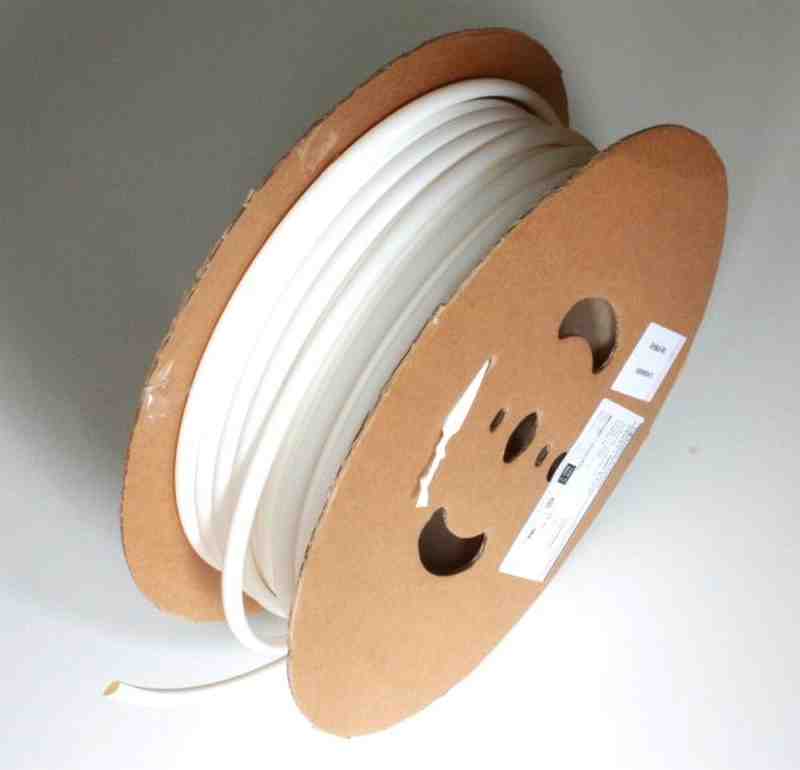

Shrink Tubing white 3,2 / 1,0 mm, 150m Reel DERAY-I 3000

Shrink Tubing white 3,2 / 1,0 mm, 150m Reel DERAY-I 3000
Shrink Tubing white 3,2 / 1,0 mm, 150m Reel DERAY-I 3000
delivery time: 2-3 Tage
Product.Nr.: 423604
weight: 0.800 kg
Manufacturer: DSG-Canusa

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price Saving pro Meter
1 239,65 EUR 1,60 EUR
>= 2 229,19 EUR -4 % 1,53 EUR

229,19 EUR - 239,65 EUR
1,60 EUR pro Meter incl. 19 % VATexcl. shipping costs

Heat Shrink Tubing DERAY®-I 3000 white 3:1 of polyolefin, thin-walled, flexible

DERAY®-I 3000 heat shrink tubing made ​​of crosslinked polyolefin , color white, shrink ratio 3:1, thin wall, flexible , flame retardant, UL, CSA, MIL, VG, DEFStan 59/97, VDE certified (DERAY®- I 3000 Clear is not UL or CSA listed), shrinking at + 90°C and is for permanent use at temperatures of -55°C to +135°C is used and manufactured in Germany.
DERAY®-I 3000 heat shrinkable tubing with internal diameters from 1.6mm to 39.1mm before shrinking by the meter in the blank according to your specifications, in practical mini-box (mini-box to 25,4mm before shrinkage) and available on industry spool reels.
Standard colors are black, clear / transparency, red, yellow, blue, white and green.
Punched shrink tubing sections in your desired length, whether or not printed, are also available on request.



Specifications DERAY®-I 3000 heat shrink tubing

Type DERAY®-I 3000
Color White
Material Cross-linked polyolefin
Material properties Thin-walled, flexible
Featuring Reel
Inner Ø before shrinking 3.0mm
Inner Ø after total shrinking 1.0mm
Wall thickness after complete shrinkage 0.55mm
Shrink Ratio 3:1
Continuous Operating Temperature -55°C bis +135°C
Shrink Temperature +90°C
Flammability Flame-retardant
Approvals / Specifications UL, CSA, MIL, VG, DEFStan 59/97, VDE
Features RoHS Complient



Complete specifications DERAY®-I 3000 heat shrink tubing as PDF for download

Heat Shrink Tubing DERAY®-I 3000, a quality tube "Made in Germany"
