TÜV Rohs Conform

Shrink Tubing black 50,8 / 25,4 mm, DERAY-HB Meter-goods

Shrink Tubing black 50,8 / 25,4 mm, DERAY-HB Meter-goods
Shrink Tubing black 50,8 / 25,4 mm, DERAY-HB Meter-goods
Shrink Tubing black 50,8 / 25,4 mm, DERAY-HB Meter-goods
delivery time: 2 - 4 days
Product.Nr.: 400028
weight: 0.073 kg
Manufacturer: DSG-Canusa

Business customers graduated prices after
registration in the login with your VAT ID.

13,95 EUR
(13,95 EUR pro meter) incl. 19 % VATexcl. shipping costs

Discount

Quantity Single price Saving pro meter
1-4 13,95 EUR 13,95 EUR
>= 5 13,07 EUR -6 % 13,07 EUR

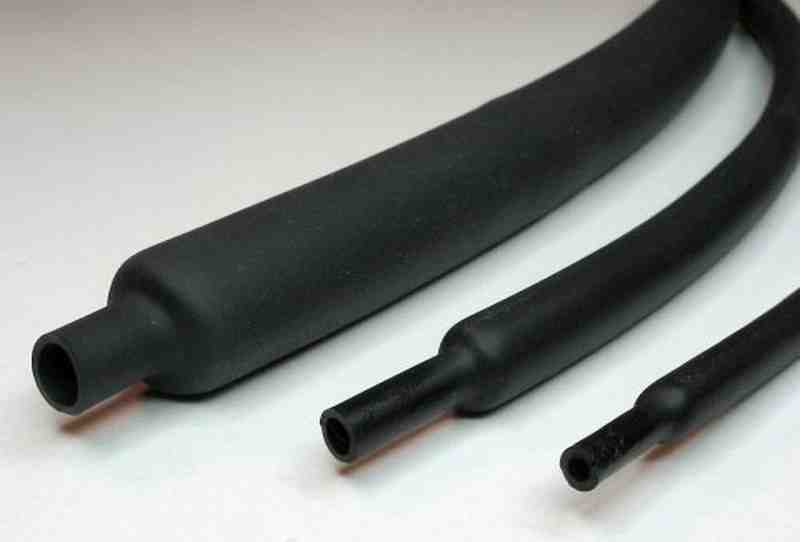

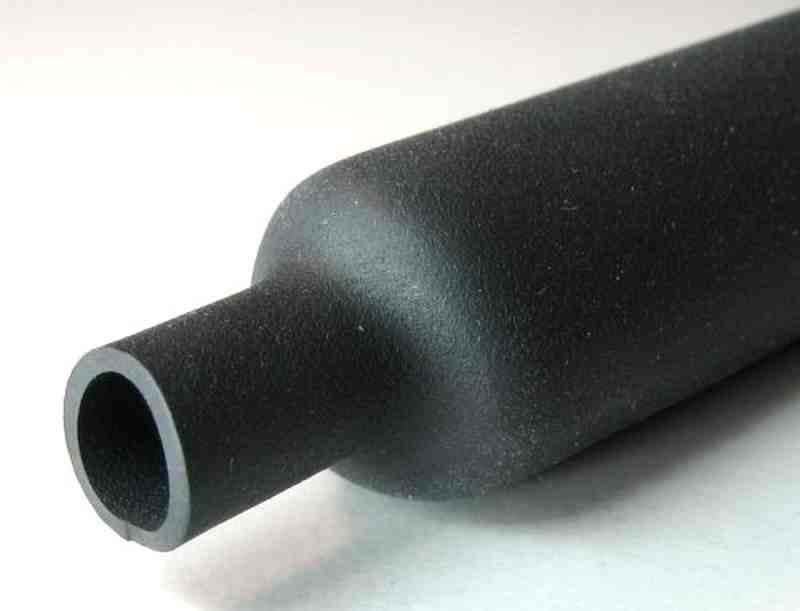

Heat Shrink Tubing DERAY®-HB black 2:1 of polyolefin, thin-walled, flexible

DERAY®-HB heat shrink tubing made ​​of crosslinked polyolefin , color black, shrink ratio 2:1, thin wall, flexible, halogen-free, not flame retardant, not UL and CSA certified, shrinking at + 125°C and is for permanent use at temperatures of -55°C to +105°C is used and manufactured in Germany.

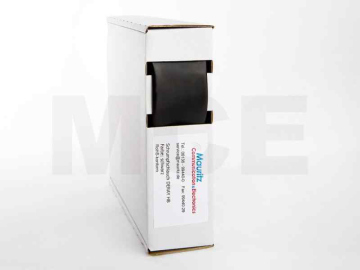

DERAY®-HB heat shrinkable tubing with internal diameters from 1.2mm to 50.8mm before shrinking by the meter in the blank according to your specifications, in practical mini-box (mini-box to 25,4mm before shrinkage) and available on industry spool reels.
Standard colors are black and clear / transparency.
Punched shrink tubing sections in your desired length, whether or not printed, are also available on request.



Specifications DERAY®-HB heat shrink tubing

Type DERAY®-HB
Color Black
Material Cross-linked polyolefin
Material properties Thin-walled, flexible
Featuring Meter Goods - cut to your specifications
Inner Ø before shrinking 50.8mm
Inner Ø after total shrinking 25.4mm
Wall thickness after complete shrinkage 1.0mm
Shrink Ratio 2:1
Continuous Operating Temperature -55°C bis +105°C
Shrink Temperature +125°C
Flammability not flame-retardant
Approvals / Specifications no approvals / halogen-free
Features RoHS Complient



Complete specifications DERAY®-HB heat shrink tubing as PDF for download

Heat Shrink Tubing DERAY®-HB, a quality tube "Made in Germany"
