TÜV Rohs Conform

H 155 PE, 50 Ohm Coaxial Cable, 500m

H 155 PE, 50 Ohm Coaxial Cable, 500m
delivery time: 2-3 Tage
Product.Nr.: 1010711-500m
weight: 21.400 kg
Manufacturer: MCE Mauritz Electronics

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

399,84 EUR
0,80 EUR pro Meter TEXT_INCL 19 % TEXT_VATexcl. shipping costs

H 155 PE

H 155 PE with black cable jacket and equally low attenuation as H 155 PVC, extended frequency range up to 6 GHz and high chemical resistance.

Attenuation @ 1,0 GHz: 0,3 dB/m
Attenuation @ 2.4 GHz: 0.48 dB/m
Attenuation @ 6 GHz: 0.86 dB/m
Impedance: 50 ± 2 Ohm
Inner conductor: stranded copper wire 19 x 0.28mm
Dielectric: Gas inj. PE 3,9mm
Outer conductor 1: aluminum foil 0,008-0,03 x 18mm
Outer conductor 2: tinned copper braid, 16 x 8 x 0,1mm
Outer insulation: PE - polyethylene, black, not UV resistant
Outer diameter: 5,4mm

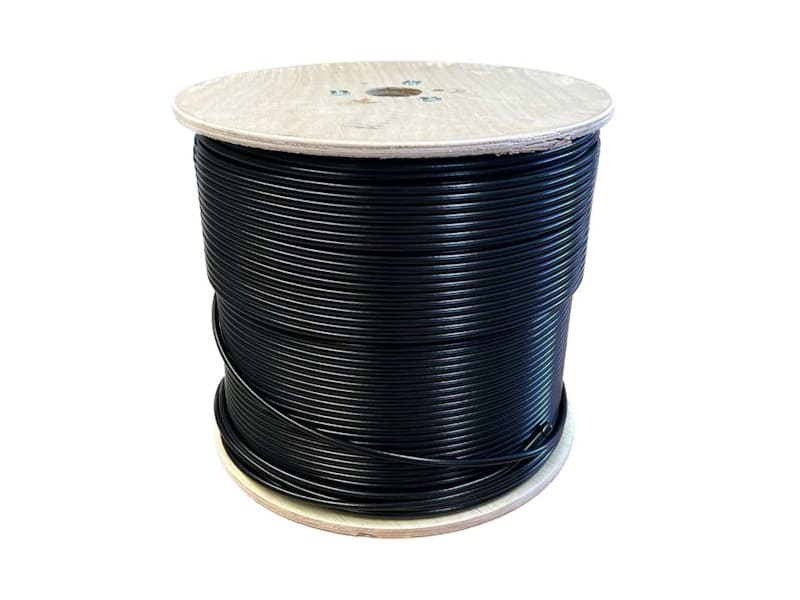

Drum with role: 500m

Downloads

H155-PE_Technische-Daten-MCE-DE-2020.pdf (0.06 MB) 0.06 MB
