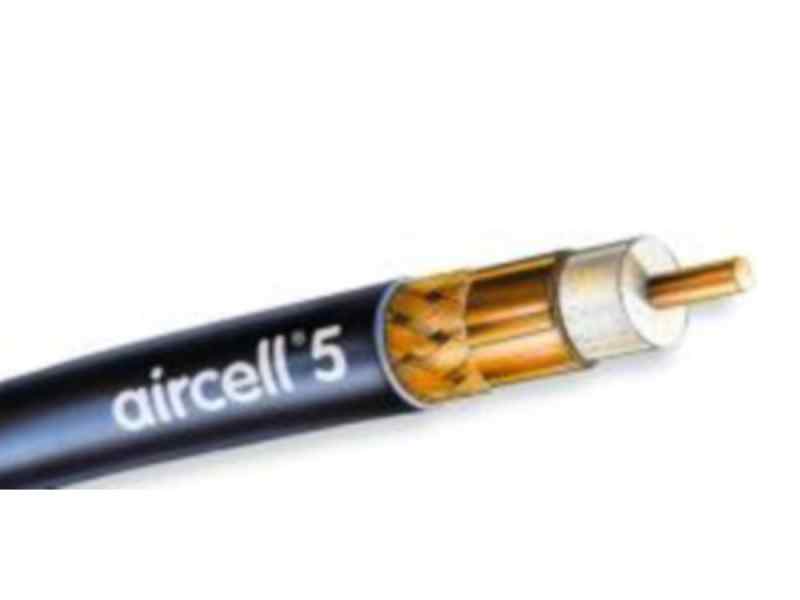

Aircell 5 Coax Cable 50 Ohm

Ab Lager verfügbar
delivery time: 2-3 Tage
Product.Nr.: 101079
weight: 0.036 kg
Manufacturer: SSB-Electronic
rating:

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price pro Meter
1-49 1,61 EUR 1,61 EUR
>= 50 -9 % 1,46 EUR 1,46 EUR

1,46 EUR - 1,61 EUR
incl. 16 % VATexcl. shipping costs

Aircell 5 is a thin, flexible coaxial cable for the frequency range to 10 GHz.

Aircell 5 - Meter Goods cut from 1m on. Free cut to your specifications.

We also supply Manufacturer manufacturing lengths:

Aircell 5, Drum with 102m
Aircell 5, Drum with 202m
Aircell 5, Drum with 505m
Aircell 5, Drum with 1010m  --> this length can only be delivered with forwarding.

About Aircell 5

The very low relative to the diameter attenuation and the usefulness of RG-58 standard connectors makes the cable for many applications in high frequency technology interesting and recommended. Attenuation at 2.4 GHz: 0,533dB / m The relatively low attenuation of Aircell 5 is achieved by a low-loss PE-Compound dielectric with a gas proportion of more than 70%. The material is also resistant to moisture. The single core inner conductor of Aircell 5 is pulled out of low-oxygen copper (OFC). To achieve a good shielding effectiveness of the outer conductor of AIRCELL5 is constructed in two layers: on a thin, overlapping copper foil a copper shield is applied with a coverage of 72%. The film is on the inside of PE-coated and thereby protected from cracking at too small bending radius. The black PVC outer sheath of Aircell 5 is UV stabilized. A big plus for Aircell5 is the availability of commercial Koaxverbindern: Aircell 5 has the same outside diameter as the well-known RG 58 coaxial cable. For this reason, almost all standard RG-58 coaxial connectors can be used for this cable. Aircell 5 is a modern coaxial cable for many applications in communications technology: it is flexible, low loss and stray radiation.

Technichal Datas Aircell 5 for Download as PDF
