H 155 PVC, 50 Ohm Coaxial Cable, UV-resistant, 500m

H 155 PVC, 50 Ohm Coaxial Cable, UV-resistant, 500m
delivery time: 2-3 Tage
Product.Nr.: 1010710-500m
weight: 21.400 kg
Manufacturer: MCE Mauritz Electronics

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

374,85 EUR
0,75 EUR pro Meter TEXT_INCL 19 % TEXT_VATexcl. shipping costs

H 155 PVC

H 155 with black PVC jacket and low attenuation and frequency range up to 6 GHz.

Attenuation @ 1,0 GHz: 0.30 dB/m
Attenuation @ 2.4 GHz: 0.48 dB/m
Attenuation @ 6 GHz: 0.86 dB/m
Impedance: 50 ± 2 Ohm
Inner conductor: stranded copper wire 19 x 0.28mm
Dielectric: Gas inj. PE 3,9mm
Outer conductor 1: aluminum foil 0,008-0,03 x 18mm
Outer conductor 2: tinned copper braid, 16 x 8 x 0.1mm
Outer insulation: PVC black

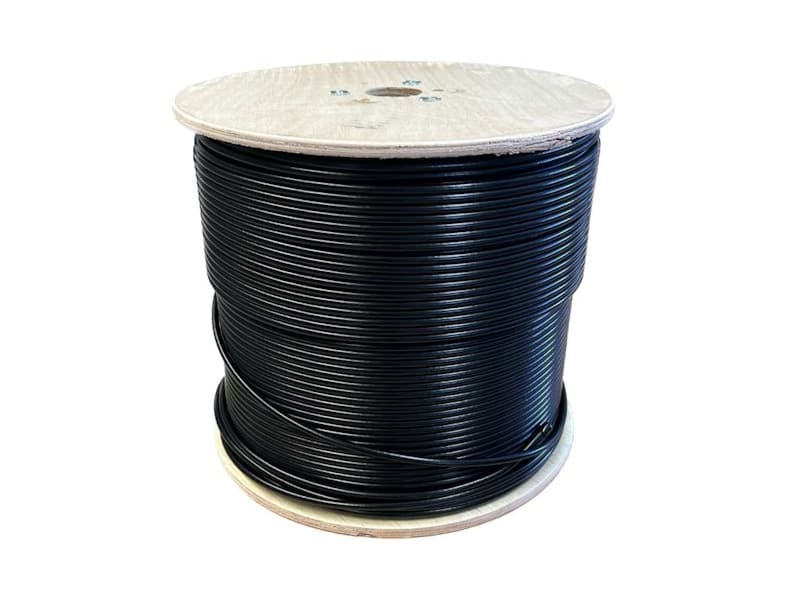

500m Role

H 155 PVC is also available by the meter cut according to your specifications.

Downloads

H155-PVC_Technische-Daten-MCE-DE_2020.pdf (0.07 MB) 0.07 MB
