Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 7m

Anfertigung nach Bestelleingang
delivery time: 2-5 Tage
Product.Nr.: 880-3211-2411-700s
weight: 0.600 kg
Manufacturer: MCE Mauritz Electronics
rating:

B2B prices after registration with your UST ID
Telephone inquiries +49 (0) 6136 - 994400

Discount

Quantity Single price
1-4 37,81 EUR
>= 5 -7 % 35,15 EUR

35,15 EUR - 37,81 EUR
incl. 19 % VATexcl. shipping costs

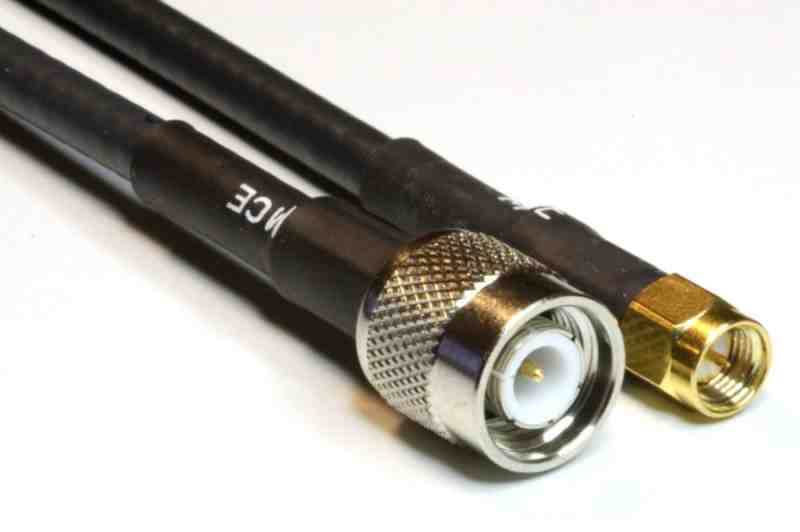

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with

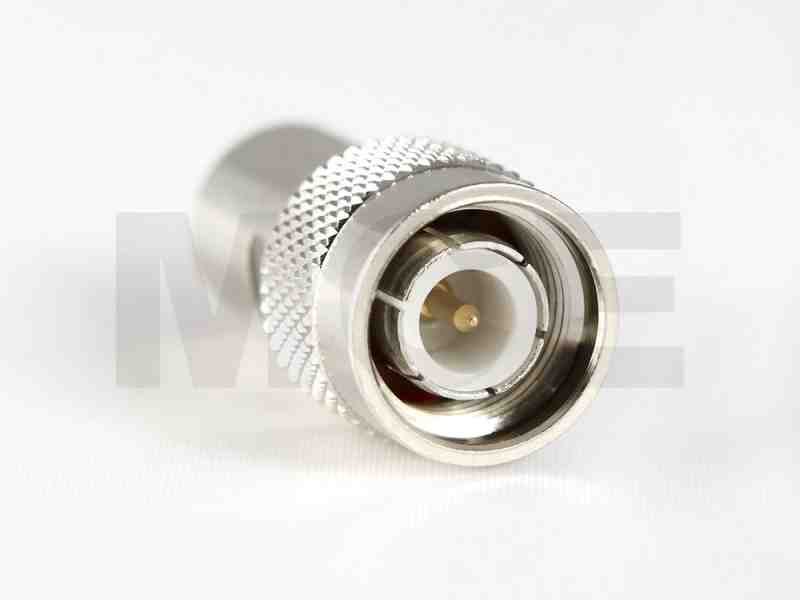

TNC Male to SMA Male
Length 7m

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

  • HAM Radio
  • Data collection with (RFID)
  • Mobile (GSM, LTE, MIMO, UMTS)
  • Navigation (GPS)
  • Telephony (DECT)
  • Wireless networking (WLAN)
  • General Electronics

DC up to 6 GHz

Attenuation values for Aircell 7
relative to 1m Cablelength:

  • 800 MHz ~ 0,28 dB
  • 1000 MHz ~ 0,31 dB
  • 1300 MHz ~ 0,42 dB
  • 1500 MHz ~ 0,39 dB
  • 1800 MHz ~ 0,42 dB
  • 2000 MHz ~ 0,45 dB
  • 2400 MHz ~ 0,49 dB
  • 2600 MHz ~ 0,52 dB
  • 5600 MHz ~ 0,87 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
