TÜV Rohs Conform

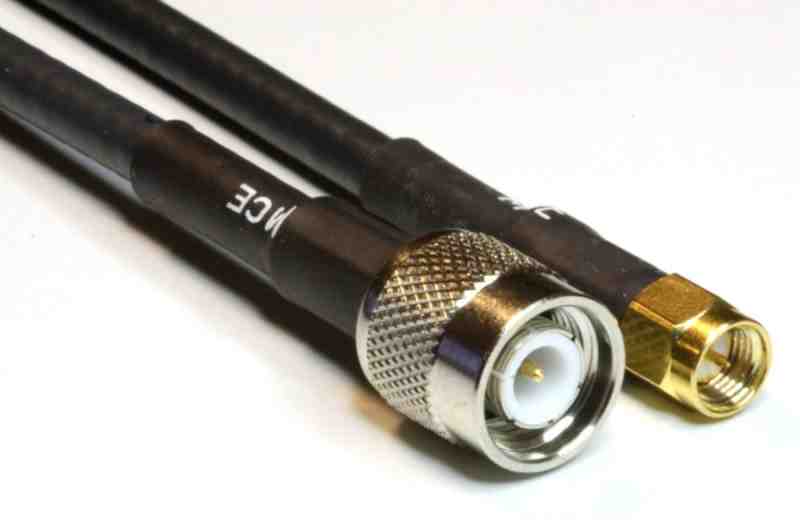

Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 25m

Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 25m
Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 25m
Aircell 7 Coaxial Cable Assemblies with TNC Male to SMA Male, 25m
delivery time: 2-5 Tage - Anfertigung nach Bestelleingang
Product.Nr.: 880-3211-2411-m25s
weight: 2.040 kg
Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

Discount

Quantity Single price Saving pro St.
1-99 109,35 EUR 109,35 EUR
>= 100 86,38 EUR -21 % 86,38 EUR

86,38 EUR - 109,35 EUR
109,35 EUR pro St. TEXT_INCL 19 % TEXT_VATexcl. shipping costs

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with
TNC Male to SMA Male
Length 25m

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

  • HAM Radio
  • Data collection with ?? Radio Frequency Identification ?? (RFID)
  • Mobile (GSM, LTE, MIMO, UMTS)
  • Navigation (GPS)
  • Telephony (DECT)
  • Wireless networking (WLAN)
  • General Electronics

DC up to 6 GHz



Attenuation values for Aircell 7
relative to 1m Cablelength:



  • 800 MHz ~ 0,28 dB
  • 1000 MHz ~ 0,31 dB
  • 1300 MHz ~ 0,42 dB
  • 1500 MHz ~ 0,39 dB
  • 1800 MHz ~ 0,42 dB
  • 2000 MHz ~ 0,45 dB
  • 2400 MHz ~ 0,49 dB
  • 2600 MHz ~ 0,52 dB
  • 5600 MHz ~ 0,87 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
