Aircell 7 assembled with SMA Male to SMA Female, 25m

Name: Aircell 7 assembled with SMA Male to SMA Female, 25m
Brand: MCE Mauritz Electronics
SKU: 880-2411-2511-m25s
Price: 134.47 EUR
Availability: InStock

delivery time: 2-8 days - Made to order

Product.Nr.: 880-2411-2511-m25s

weight: 2.040 kg

Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

134,47 EUR
(134,47 EUR pro pce.) incl. 19 % VATexcl. shipping costs

Discount

Quantity	Single price	Saving	pro pce.
1-99	134,47 EUR		134,47 EUR
>= 100	102,88 EUR	-23 %	102,88 EUR

The selected quantity can be changed at any time in your shopping cart.

Description
Reviews

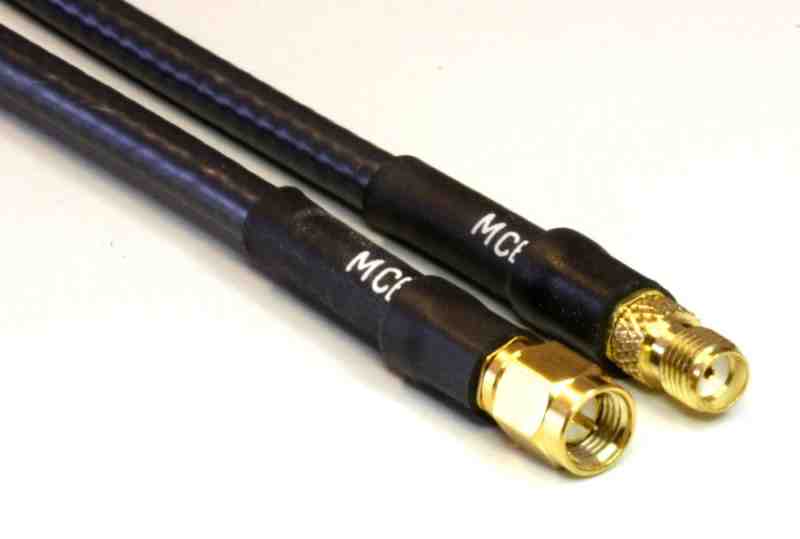

Aircell 7 Coaxial Cabel

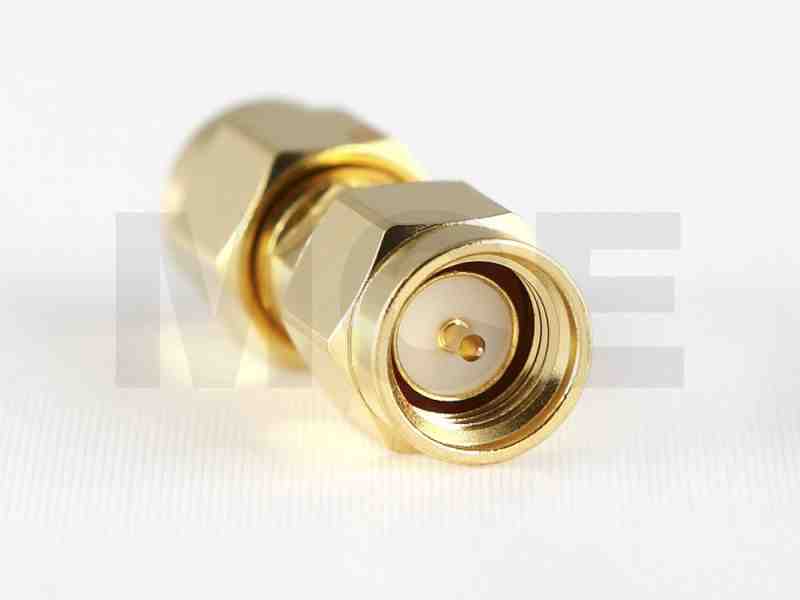

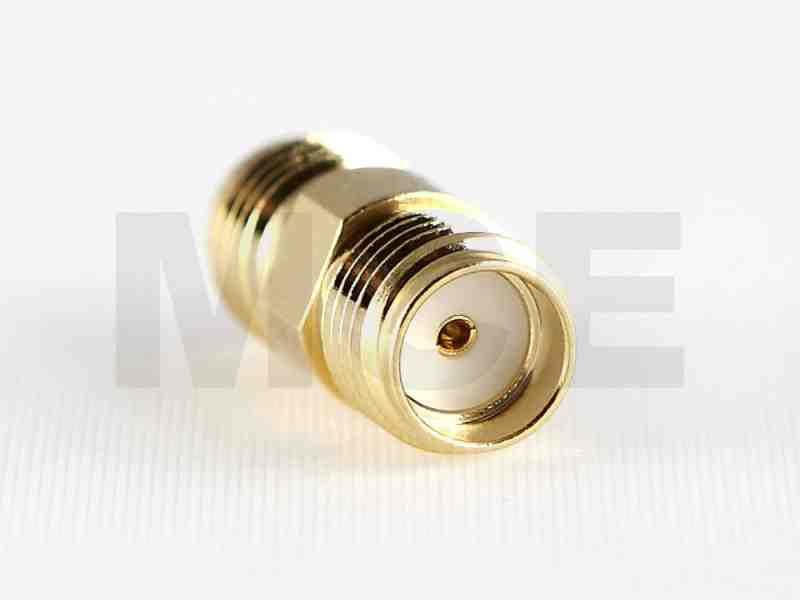

assembled with SMA Male to SMA Female
Length 25m
Attenuation values for Aircell 7,
relative to 1m cable length:

800 MHz ~ 0,19dB
1000 MHz ~ 0,22 dB
1300 MHz ~ 0,25 dB
1500 MHz ~ 0,27dB
1800 MHz ~ 0,3 dB
2000 MHz ~ 0,32 dB
2400 MHz ~ 0,36 dB
2600 MHz ~ 0,38 dB
5600 MHz ~ 0,62 dB

Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
