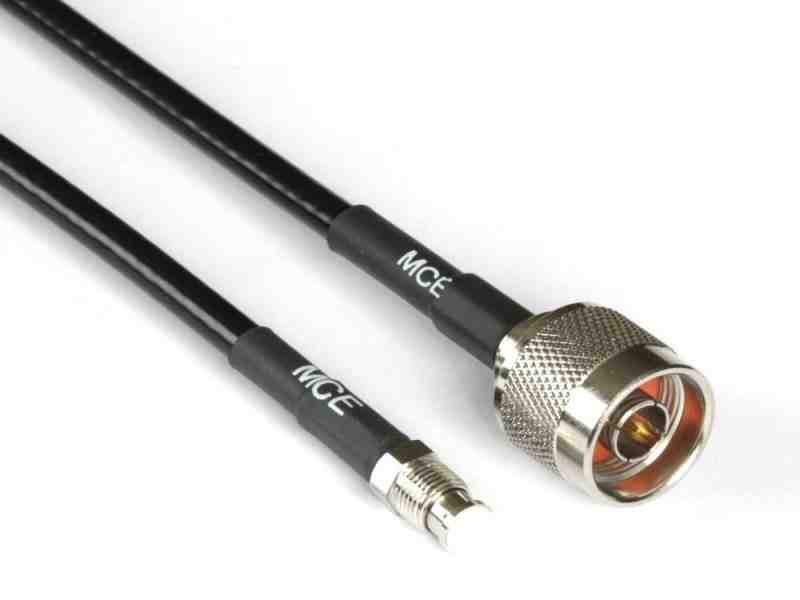

Aircell 7 assembled with N Male to FME Female, 25m

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with

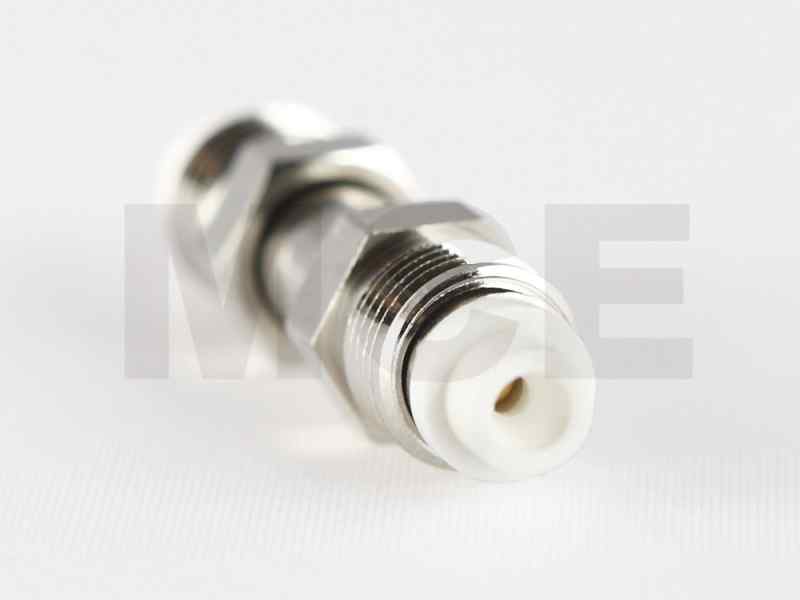

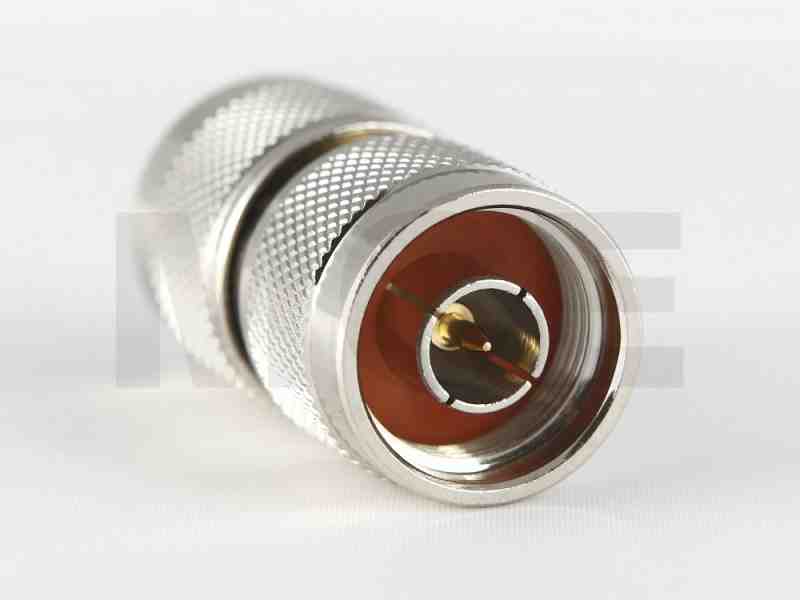

N Plug, FME Jack
Length 25m

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

• HAM Radio
• Data collection with (RFID)
• Mobile (GSM, LTE, MIMO, UMTS)
• Navigation (GPS)
• Telephony (DECT)
• Wireless networking (WLAN)
• General Electronics

DC up to 6 GHz

Attenuation values for Aircell 7
relative to 1m Cablelength:

• 800 MHz ~ 0,28 dB
• 1000 MHz ~ 0,31 dB
• 1300 MHz ~ 0,42 dB
• 1500 MHz ~ 0,39 dB
• 1800 MHz ~ 0,42 dB
• 2000 MHz ~ 0,45 dB
• 2400 MHz ~ 0,49 dB
• 2600 MHz ~ 0,52 dB
• 5600 MHz ~ 0,87 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
