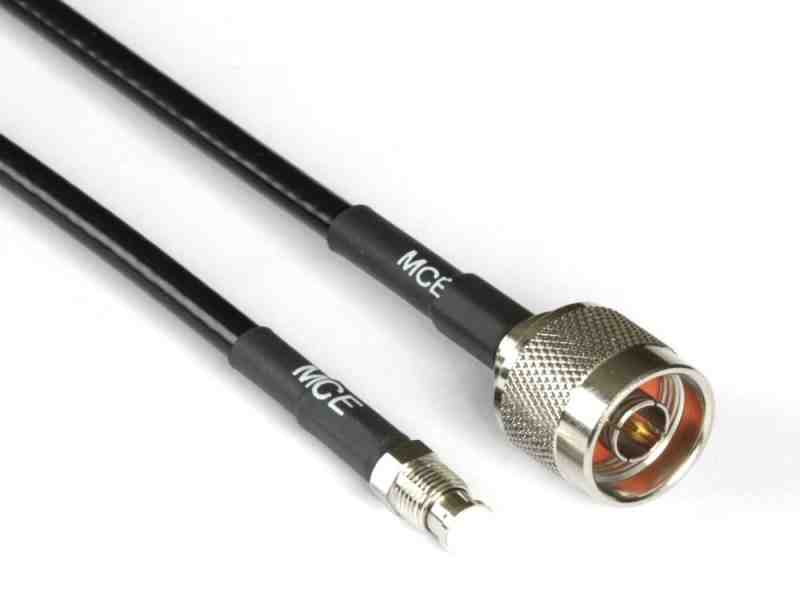

Aircell 7 assembled with N Male to FME Female, 20m

Name: Aircell 7 assembled with N Male to FME Female, 20m
Brand: MCE Mauritz Electronics
SKU: 880-2211-1511-m20s
Price: 89.23 EUR
Availability: InStock

delivery time: 2 - 7 days - Made to order - no stock items

Product.Nr.: 880-2211-1511-m20s

weight: 1.640 kg

Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

89,23 EUR
(89,23 EUR pro pce.) incl. 19 % VATexcl. shipping costs

Discount

Quantity	Single price	Saving	pro pce.
1-99	89,23 EUR		89,23 EUR
>= 100	68,26 EUR	-23 %	68,26 EUR

The selected quantity can be changed at any time in your shopping cart.

Description
Reviews

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with

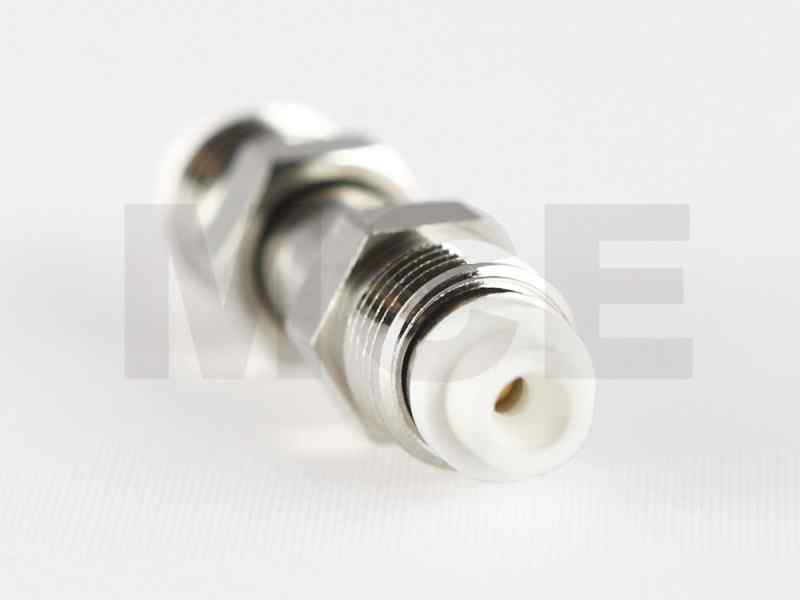

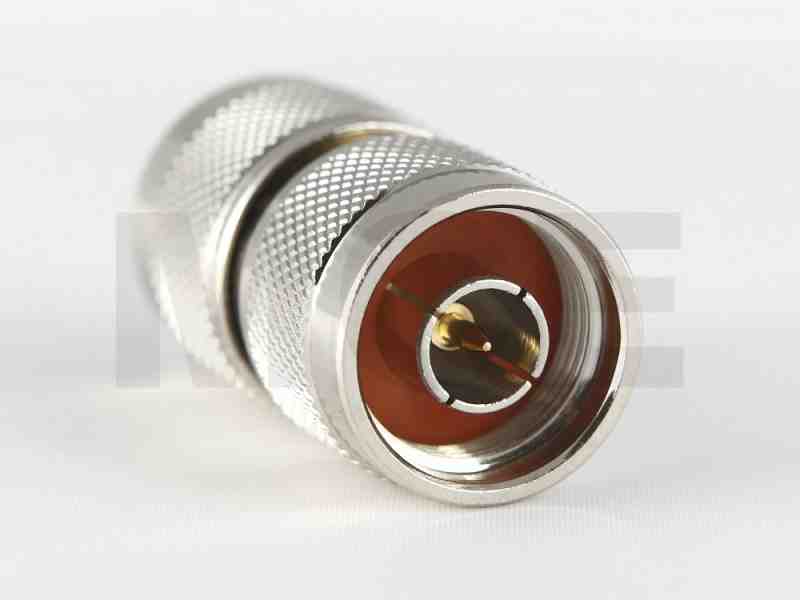

N Plug, FME Jack
Length 20m

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

HAM Radio
Data collection with (RFID)
Mobile (GSM, LTE, MIMO, UMTS)
Navigation (GPS)
Telephony (DECT)
Wireless networking (WLAN)
General Electronics

DC up to 6 GHz

Attenuation values for Aircell 7
relative to 1m Cablelength:

800 MHz ~ 0,28 dB
1000 MHz ~ 0,31 dB
1300 MHz ~ 0,42 dB
1500 MHz ~ 0,39 dB
1800 MHz ~ 0,42 dB
2000 MHz ~ 0,45 dB
2400 MHz ~ 0,49 dB
2600 MHz ~ 0,52 dB
5600 MHz ~ 0,87 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
