Aircell 7 assembled with N Male R/A to SMA Male, 20m

Name: Aircell 7 assembled with N Male R/A to SMA Male, 20m
Brand: MCE Mauritz Electronics
SKU: 880-2231-2411-m20s
Price: 99.22 EUR
Availability: InStock

delivery time: 2-8 days - Made to order

Product.Nr.: 880-2231-2411-m20s

weight: 1.640 kg

Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

99,22 EUR
(99,22 EUR pro pce.) incl. 19 % VATexcl. shipping costs

Discount

Quantity	Single price	Saving	pro pce.
1-99	99,22 EUR		99,22 EUR
>= 100	75,91 EUR	-23 %	75,91 EUR

The selected quantity can be changed at any time in your shopping cart.

Description
Reviews

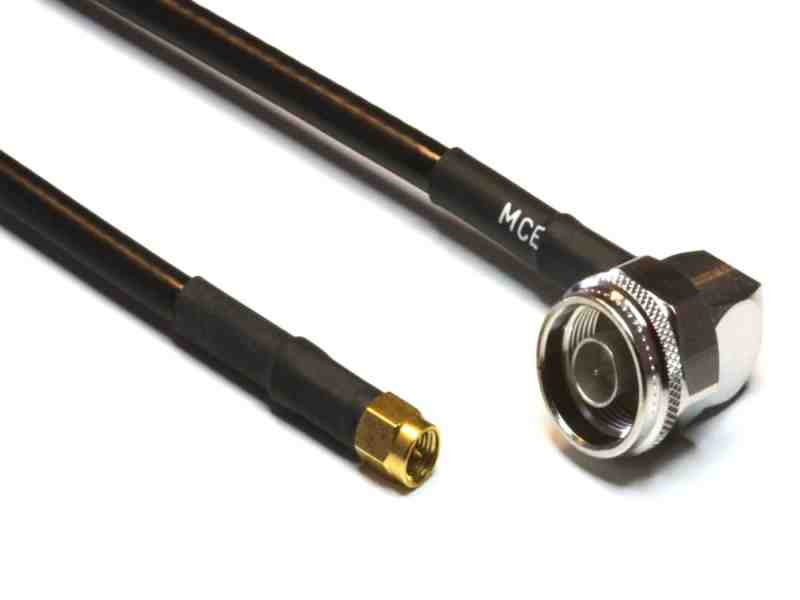

Aircell 7 Coaxial Cabel

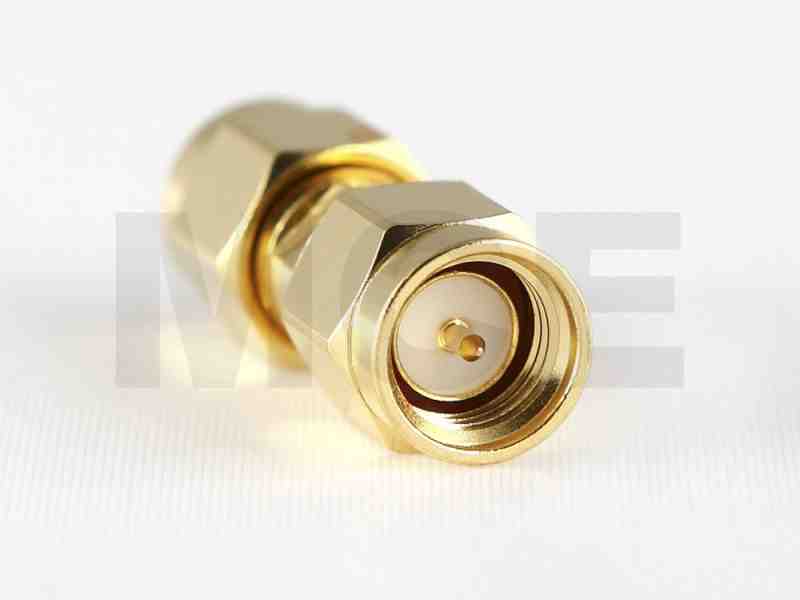

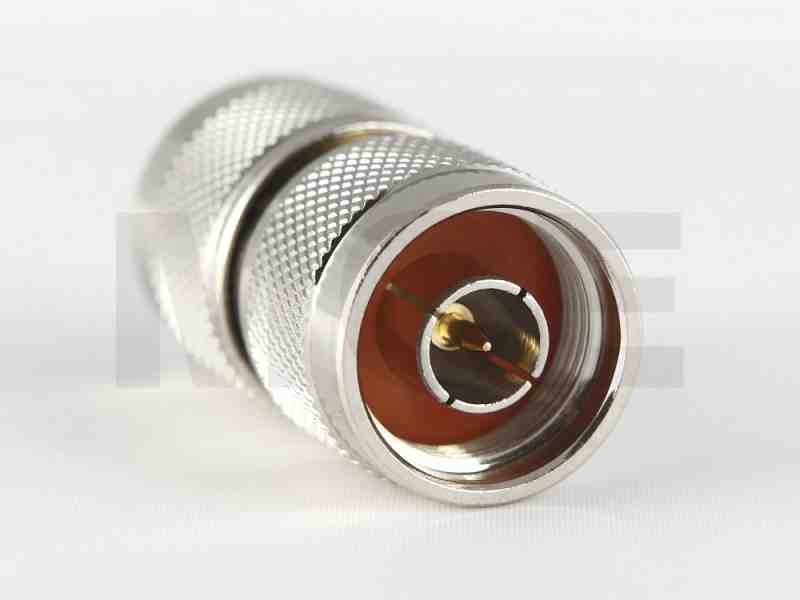

assembled with N Angle Plug to SMA Plug
Length 20m
Attenuation values for Aircell 7,
relative to 1m cable length:

800 MHz ~ 0,19dB
1000 MHz ~ 0,22 dB
1300 MHz ~ 0,25 dB
1500 MHz ~ 0,27dB
1800 MHz ~ 0,3 dB
2000 MHz ~ 0,32 dB
2400 MHz ~ 0,36 dB
2600 MHz ~ 0,38 dB
5600 MHz ~ 0,62 dB

Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
