Aircell 7 assembled with N Male R/A to FME Female, 6m

Name: Aircell 7 assembled with N Male R/A to FME Female, 6m
Brand: MCE Mauritz Electronics
SKU: 880-2231-1511-600s
Price: 44.74 EUR
Availability: InStock

delivery time: 2 - 7 days - Made to order - no stock items

Product.Nr.: 880-2231-1511-600s

weight: 0.520 kg

Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

44,74 EUR
(44,74 EUR pro pce.) incl. 19 % VATexcl. shipping costs

Discount

Quantity	Single price	Saving	pro pce.
1-99	44,74 EUR		44,74 EUR
>= 100	34,22 EUR	-24 %	34,22 EUR

The selected quantity can be changed at any time in your shopping cart.

Description
Reviews

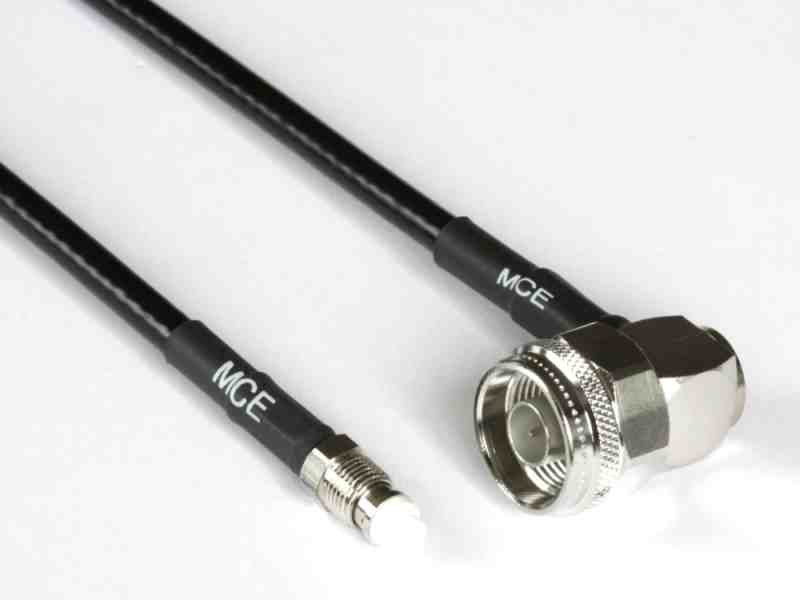

Aircell 7
Low attenuation 50 Ohm coaxial cable
Assembled with

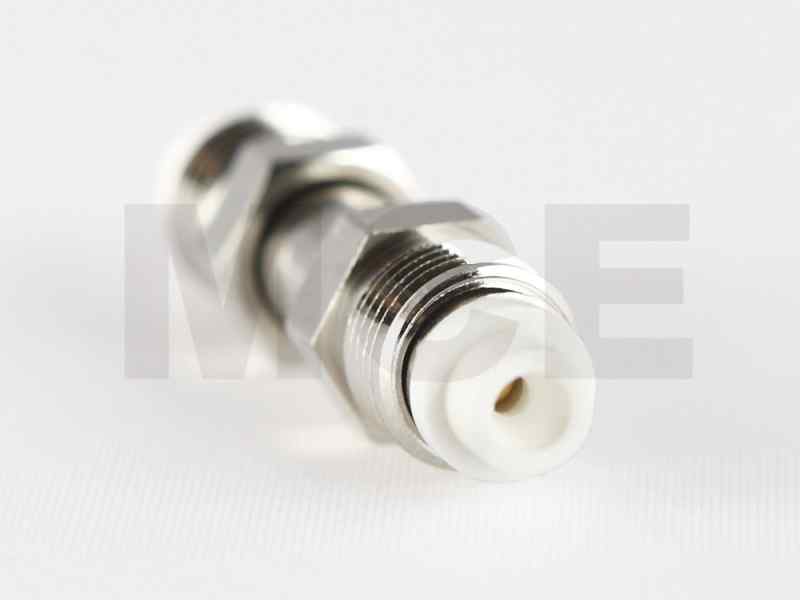

N Angle Plug to FME Jack
Length 6m

Applications:
Antenna Cables, Measuring Cables, Patchcables,
Test Leads, Extension Cords a.s.o.
DC up to 6 GHz

HAM Radio
Data collection with (RFID)
Mobile (GSM, LTE, MIMO, UMTS)
Navigation (GPS)
Telephony (DECT)
Wireless networking (WLAN)
General Electronics

DC up to 6 GHz

Attenuation values for Aircell 7
relative to 1m Cablelength:

800 MHz ~ 0,19 dB
1000 MHz ~ 0,22 dB
1300 MHz ~ 0,25 dB
1500 MHz ~ 0,27 dB
1800 MHz ~ 0,3 dB
2000 MHz ~ 0,32 dB
2400 MHz ~ 0,36 dB
2600 MHz ~ 0,38 dB
5600 MHz ~ 0,62 dB

Please note:
May be due to the conversionton 1m cable length of deviations
+ /, 1% are the specified attenuation values!
In doubt always take a look to the data sheet for Aircell 7 .
