TÜV Rohs Conform

Aircell 7 assembled with BNC Male to BNC Male, 9m

delivery time: 2-5 Tage - Anfertigung nach Bestelleingang
Product.Nr.: 880-1011-1011-900s
weight: 0.760 kg
Manufacturer: MCE Mauritz Electronics

Business customers graduated prices after
registration in the login with your VAT ID.

Discount

Quantity Single price Saving pro St.
1-99 49,69 EUR 49,69 EUR
>= 100 39,26 EUR -21 % 39,26 EUR

39,26 EUR - 49,69 EUR
49,69 EUR pro St. TEXT_INCL 19 % TEXT_VATexcl. shipping costs

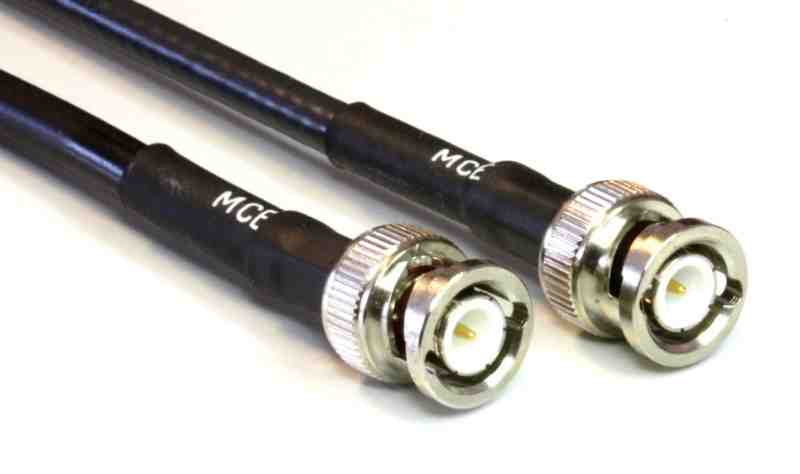

Aircell 7 Coaxial Cabel

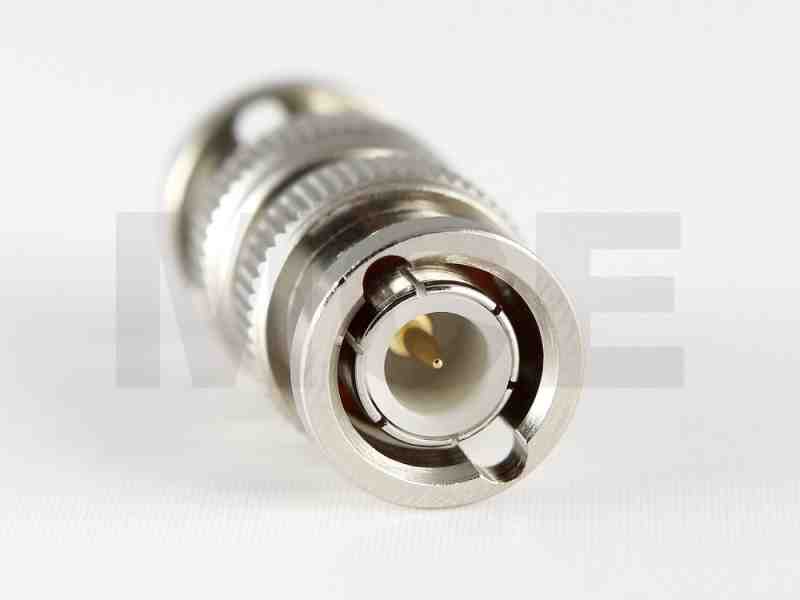

assembled with BNC Male to BNC Male
Length 9m
Attenuation values for Aircell 7,
relative to 1m cable length:

  • 800 MHz ~ 0,19dB
  • 1000 MHz ~ 0,22 dB
  • 1300 MHz ~ 0,25 dB
  • 1500 MHz ~ 0,27dB
  • 1800 MHz ~ 0,3 dB
  • 2000 MHz ~ 0,32 dB
  • 2400 MHz ~ 0,36 dB
  • 2600 MHz ~ 0,38 dB
  • 5600 MHz ~ 0,62 dB


Please note:
Because of the conversion to 1m cable length, deviations
of + /, 1% of specified attenuation values are possible!
If you have any doubt, please always take a look to the data sheet for Aircell 7
